Key Features
Fresh Air Always
Two-way ventilation technology simultaneously expels stale indoor air while bringing in fresh outdoor air. Delivers up to 17.6 CFM airflow, ensuring hourly air exchange for a 1,060 cubic foot room (based on 106 sq. ft. × 10 ft. ceiling).
Energy Recovery
Features total heat exchange technology to recover energy while promoting air exchange. Preheats or precools the incoming air to reduce energy loss. Improves energy efficiency and saves about 1 kWh daily compared to traditional ventilators.
Cleaner, Healthier Air

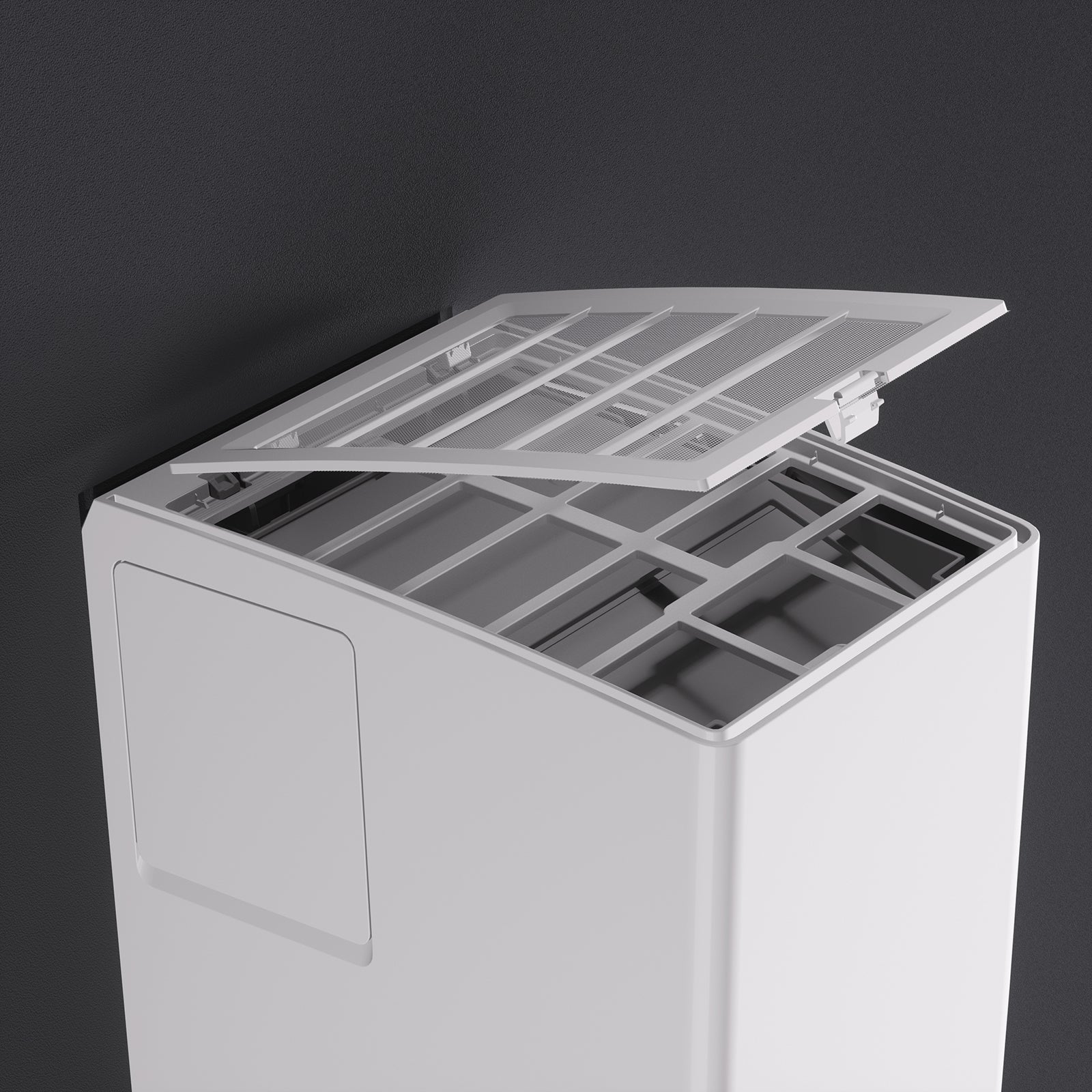

Integrated HEPA filter captures 99.97% of airborne particles as small as 0.3 microns, including dust, pollen, and pet dander. Enhances indoor air quality without opening windows or doors. The filter is removable and replaceable for easy maintenance.

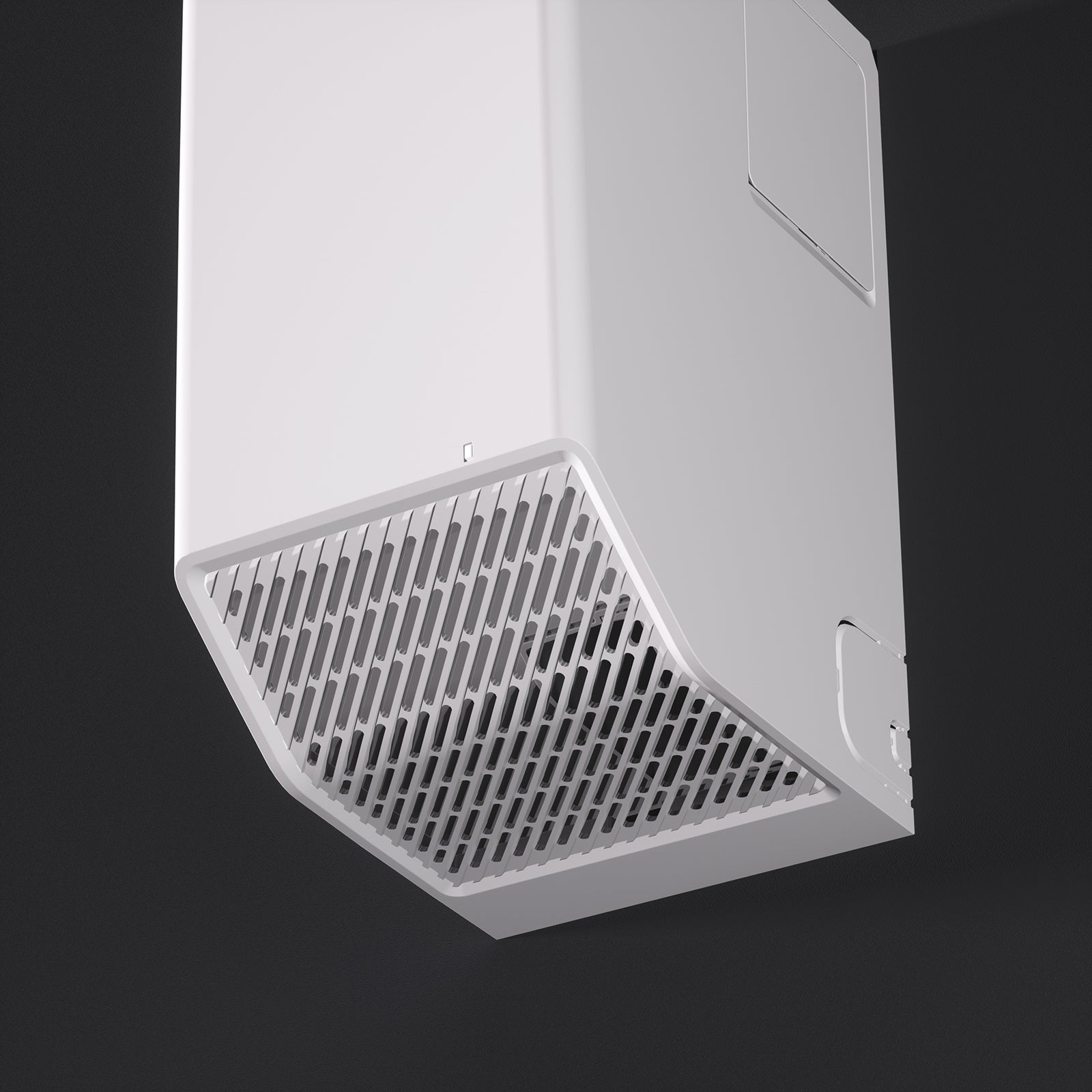

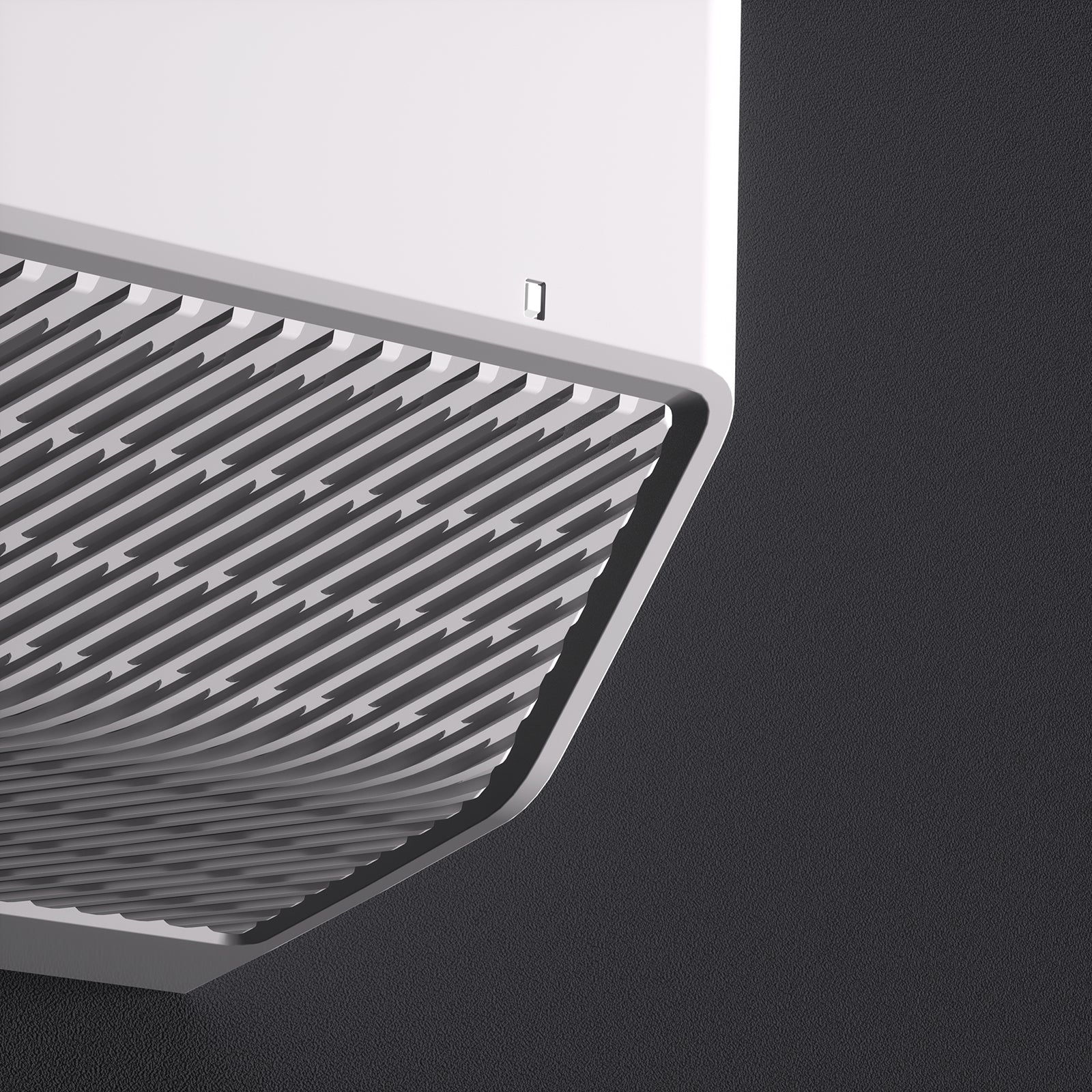

Flexible Airflow Control
The 45° airflow design ensures broader air distribution, while 7 fan speeds provide tailored control. Use the "Fan" button to adjust airflow regardless of AC status, as long as the two-way ventilation function is activated.

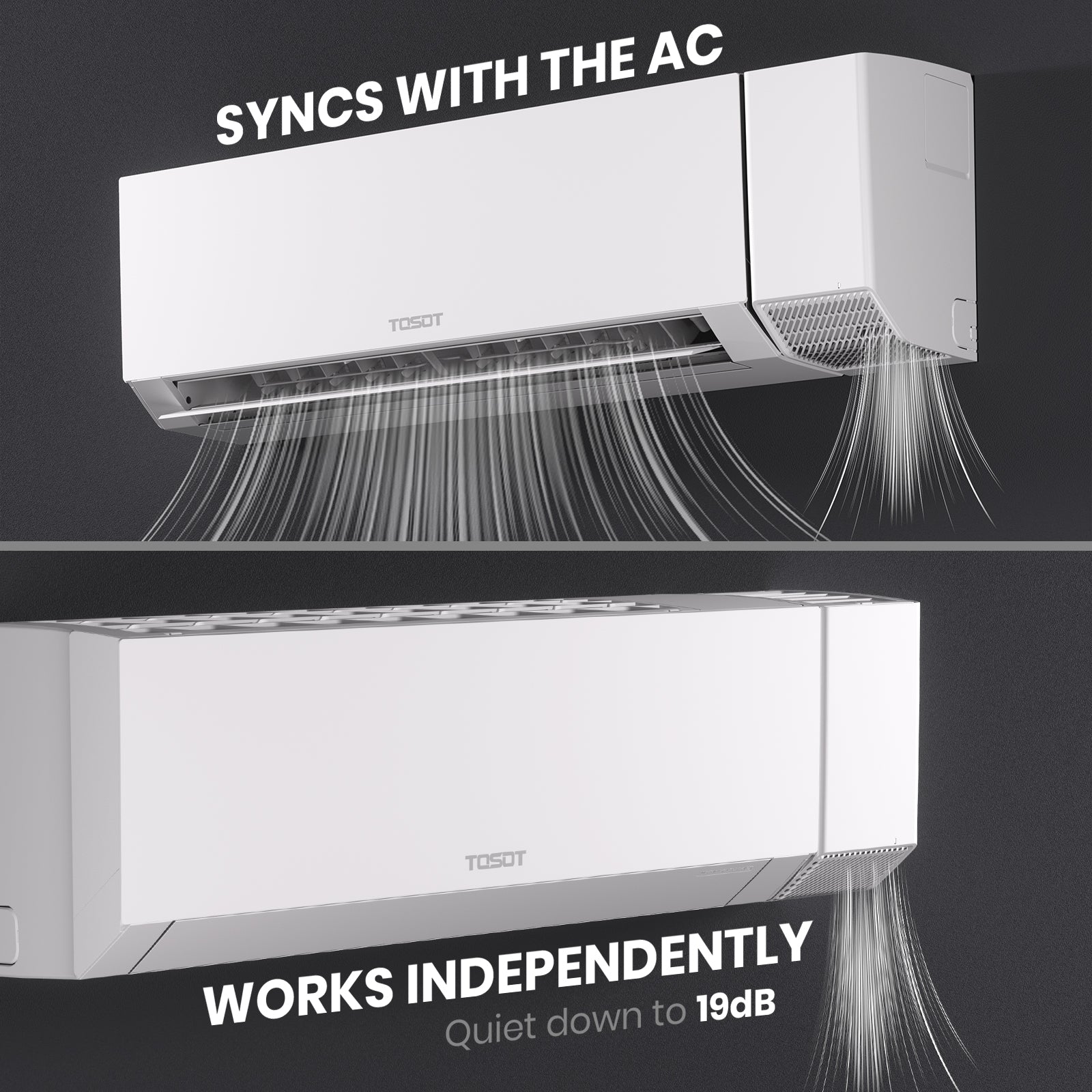

Versatile Operation
Syncs with Aoraki mini-split systems for coordinated control by pressing "Mode" and "Health" buttons after the AC is turned on. It also works independently by pressing "Mode" and "Health" buttons when the AC is off.
Condensation Protection
Monitors indoor and outdoor temperature and humidity levels. Automatically reduces running speed or shuts down with significant temperature differences to prevent condensation, ensuring reliable performance.
User-Friendly Design

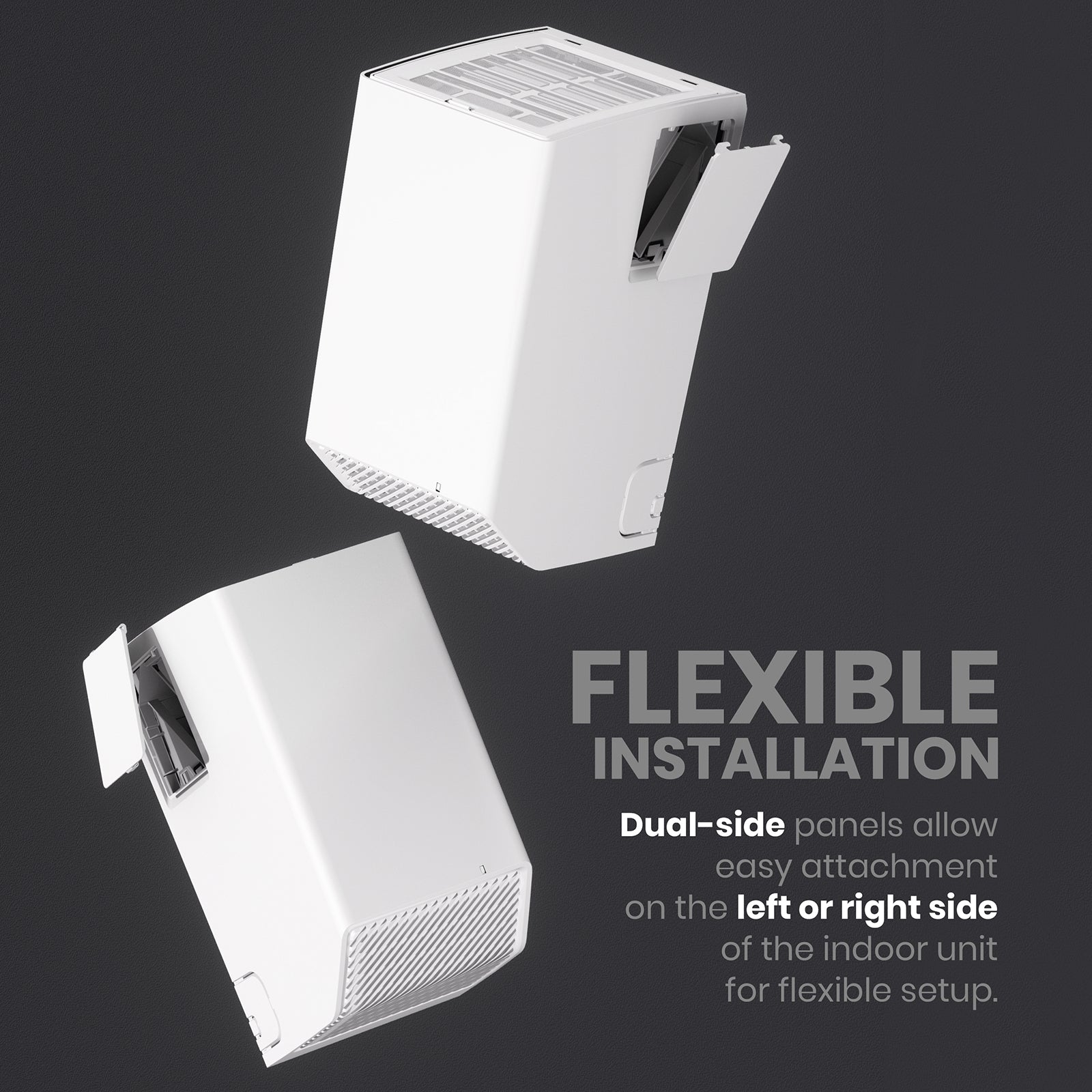

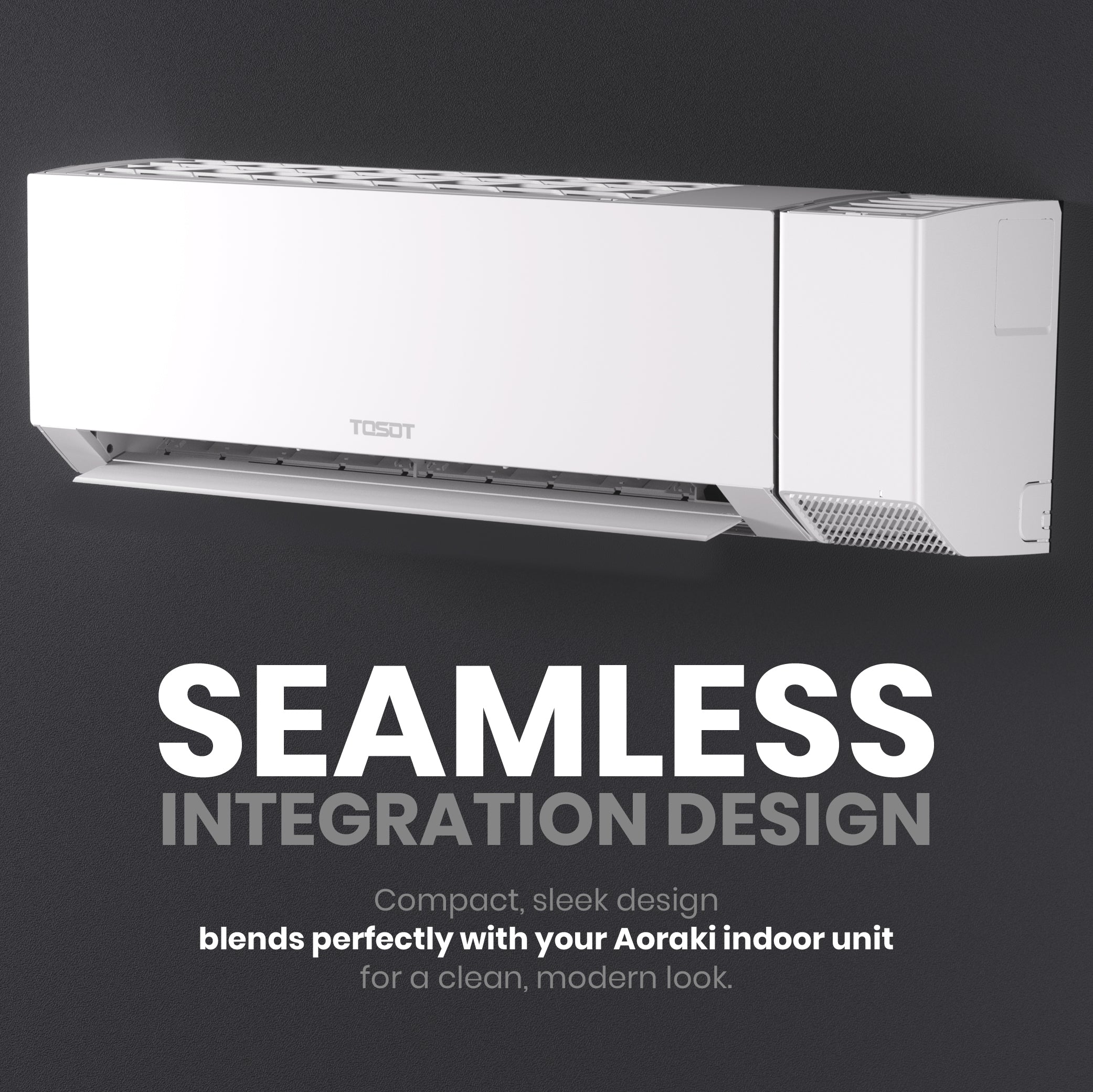

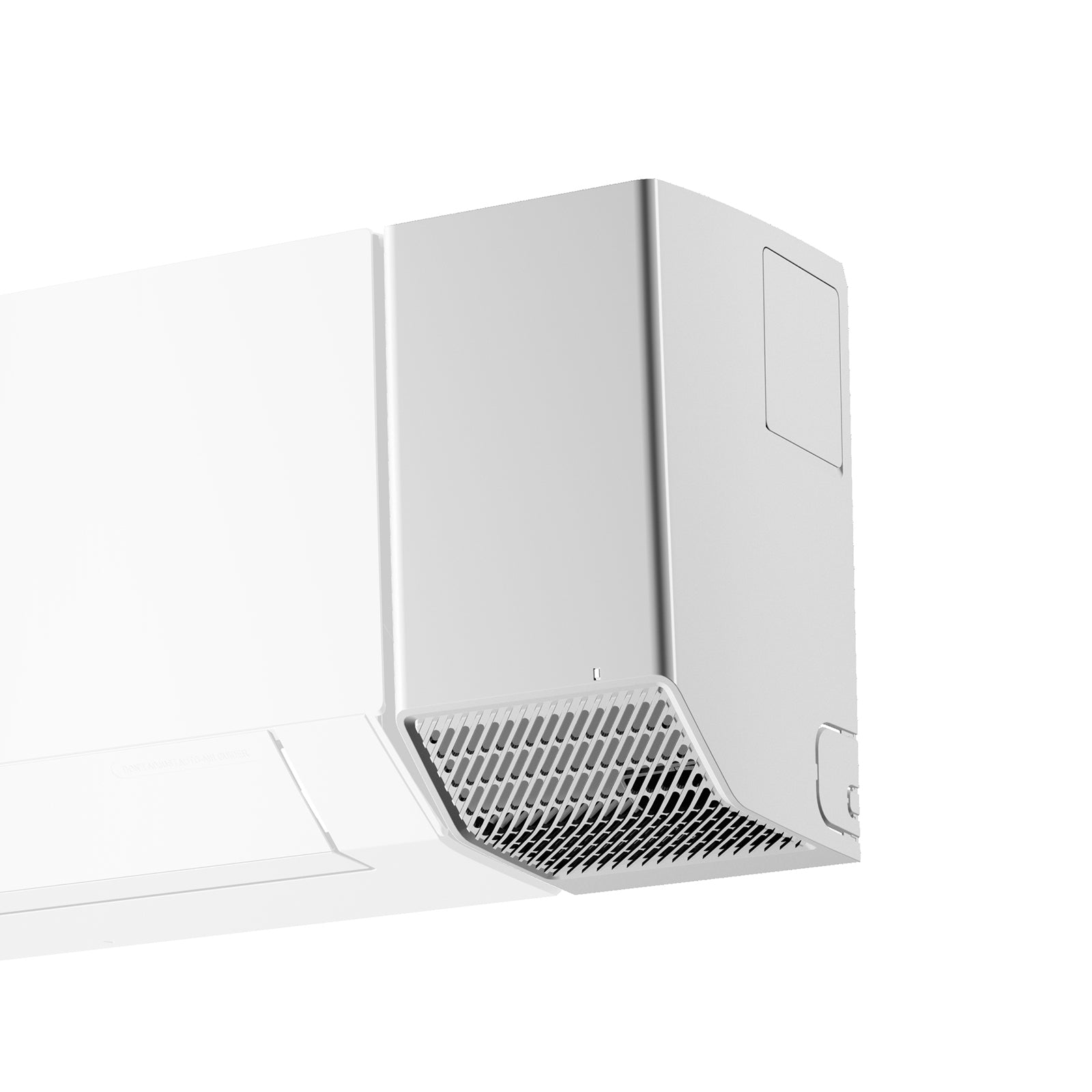

Operates down to 19 dB. The compact structure integrates seamlessly with the indoor unit. A front indicator light flashes to signal any issues for easy troubleshooting. Removable side panels on both sides support flexible installation.
Parts List
- 1 × Fresh Air Pipe (Includes the insulation cotton ø 55mm)
- 1 × Rainproof Joint
- 1 × Mounting Plate
- 1 × Wire Cross Plate
- 2 × Joint Sub-assy 2 (Air In)
- 1 × Expansion Pipe Sub-assy
- 1 × Wire of Two-Way Ventilation System (A)
- 1 × Wire of Two-Way Ventilation System (B)
- 1 × Healthy Filter
- 1 × Screw Accessory
- 1 × Connection Line
Specifications
| Model | SU-AORAKH-ERV |
| Rated Voltage (V) | 12±0.5 |
| Power Input (W) | 13 |
| Noise Level (dB(A)) | 19-42 |
| Weight (lb) | 3.97 |
